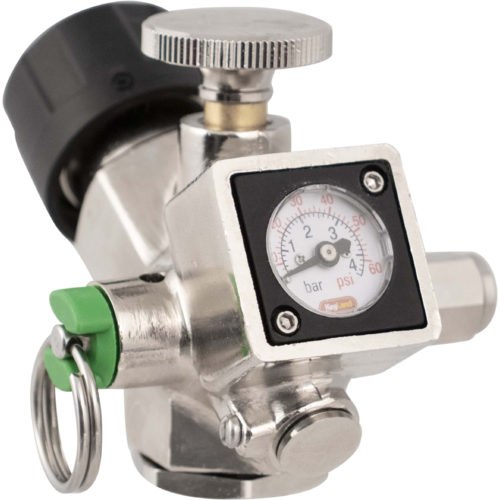

KegLand Mini Regulator, CO2 Core 360

The new Core 360 Mini CO2 Regulator from KegLand represents a huge jump forward in the mini regulator market. After much feedback on how to make mini regulators more compact, sturdy and efficient, the brilliant engineers at KegLand have come up with this mini-beast.

The heavy-duty chrome-plated solid cast brass body will stand up to years of abuse, and is well-suited to protect the mini pressure gauge. A unique 2-step cartridge installation process results in zero gas loss. First the cartridge is fully threaded into the unit to form a seal before it's opened, then the actuator pin is threaded down to puncture the cartridge and release gas into the regulator. The included bushing adapter is ready to accept 16g 3/8"-24 UNF threaded cartridges, and with a simple adapter you can switch to 74-gram 5/8"-18 UNF threaded cartridges.

The gas outlet can be swapped between a female flare connection for flare ball lock disconnects and a 6.5mm Duotight-compatible barb for use with draft line. The barb is a great option for dispensing commercial kegs. There are also two potential outlets at either the side or the front of the regulator. This makes it easy to orient the regulator depending on whether you're using plastic or stainless steel ball lock disconnects.

If you remove the 16g cartridge bushing, you'll find TR21-4 female threads for use with SodaStream gas cylinders. These can be a great option for mobile dispensing— they provide much more gas than a CO2 cartridge and are more easily transported than a full CO2 tank.

Includes:

• KegLand Core 360 Mini Regulator
• 6.5mm Duotight-compatible hose barb
• Female Flare Fitting for MFL Disconnects
• Port end cap
• 65psi Green PRV
• SodaStream to 16g thread bushing
